Type:

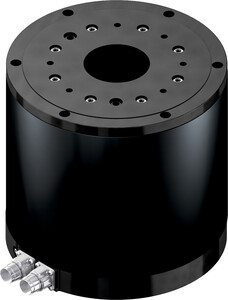

DMS3C-A000
Artikelnummer:
7.R2350
| Technische Daten Rundtisch | |||
|---|---|---|---|
| Tp | Spitzenmoment (für 1 Sek.) | 180 | Nm |
| Tc | Dauermoment | 60 | Nm |
| Ts | Stillstandsmoment | 42 | Nm |
| J | Massenträgheitsmoment | 0,035 | kgm² |
| Masse | 28,5 | kg | |
| Fa | Max. Axiallast | 8000 | N |
| Fr | Max. Radiallast | 6500 | N |
| Mk | Max. Kippmoment | 240 | Nm |
| Max. Drehzahl (600 VDC) | 300 | 1/min | |
| Max. Drehzahl (325 VDC) | 120 | 1/min | |
| Genauigkeit | ± 25 | arcsec | |
| Wiederholgenauigkeit | ± 2.5 | arcsec | |
| Rundlauffehler | 0,05 | mm | |
| Planlauffehler | 0,05 | mm | |
| Außendurchmesser | 200 | mm | |
| Di | Hohlwellendurchmesser | 50 | mm |
| H | Höhe | 230 | mm |
| Schutzklasse | IP40 | ||
| Technische Daten Motor | |||
|---|---|---|---|
| Ip | Spitzenstrom (für 1 Sek.) | 10,2 | Aeff |
| Ic | Dauerstrom | 3,4 | Aeff |
| Km | Motorkonstante | 3,6 | Nm/⎷W |
| R25 | Wicklungswiderstand | 18,8 | Ω |
| L25 | Induktivität | 81 | mH |
| Te | Elektrische Zeitkonstante | 4,9 | ms |
| Kt | Drehmomentkonstante | 18 | Nm/Aeff |
| Ku | Spannungskonstante | 9 | Veff/(rad/s) |
| 2p | Polanzahl | 22 | |
| Rth | Thermischer Widerstand | 0,32 | °C/W |
| Tth | Thermische Zeitkonstante | 2170 | s |
| Thermoschutz | PTC SNM 120 | ||
| Max. Zwischenkreisspannung | 600 | V | |
