Typ:

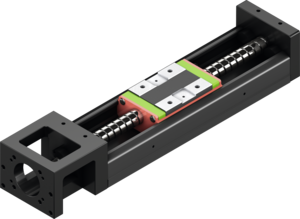

KF8620P640A1F0
Č. výrobku:
10.03169

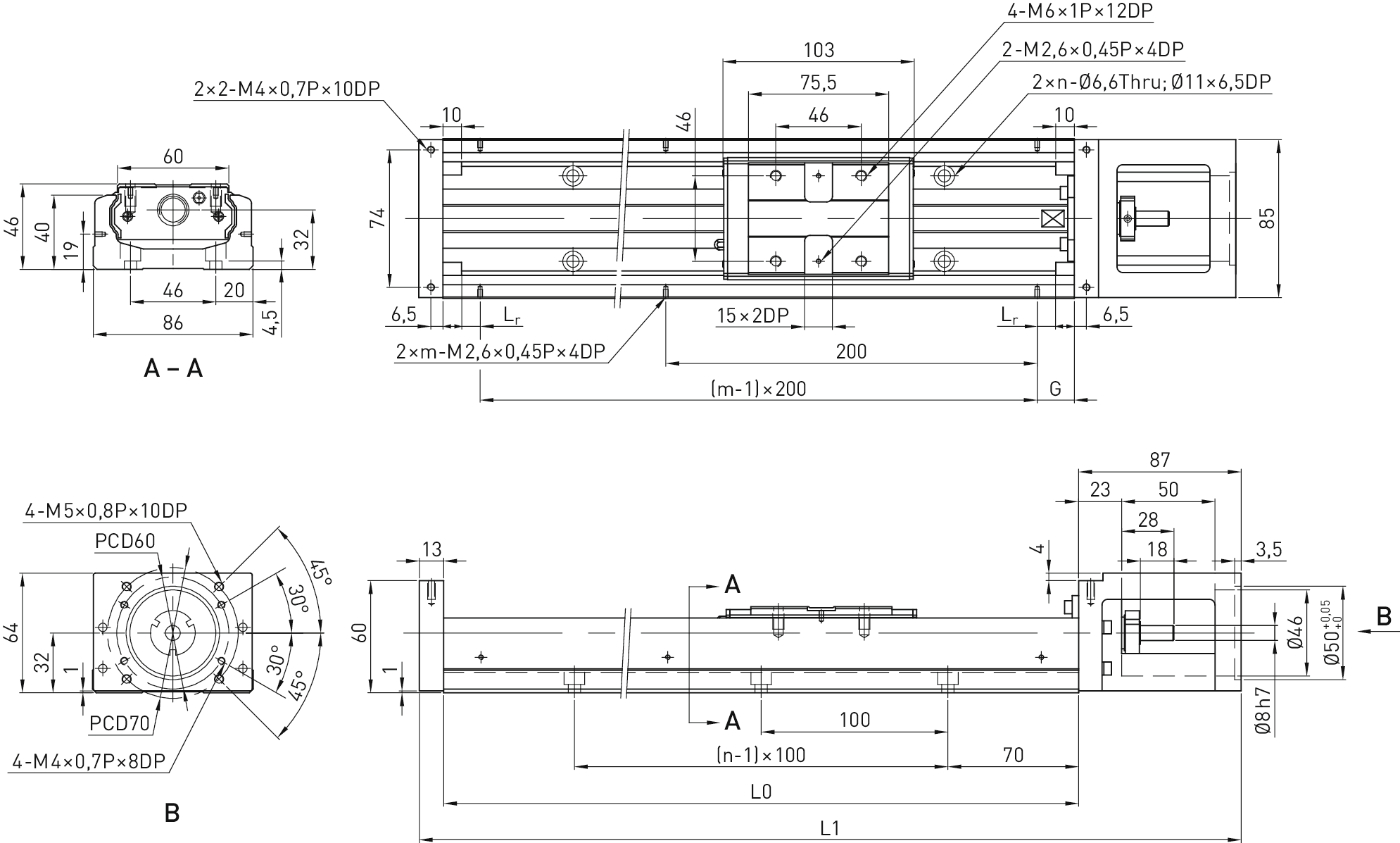

Dimensions
| Dimensions and weights | |||
|---|---|---|---|
| L0 | Profile length | 640 | mm |
| L1 | Axis length | 740 | mm |
| Maximum travel distance | 501 | mm | |
| Lr | Reserve stroke | 8 | mm |
| G | 20 | mm | |
| K | 70 | mm | |
| n | 6 | ||
| m | 4 | ||
| Mass | 10,1 | kg | |
| Load ratings of linear axis | |||
|---|---|---|---|
| Cdyn | Dynamic load rating linear guideway | 38140 | N |
| C0 | Static load rating of the linear guideway | 45545 | N |
| MX | Static moment of the linear guideway | 1349 | Nm |
| MY | Static moment of the linear guideway | 566 | Nm |
| MZ | Static moment of the linear guideway | 566 | Nm |
| Spindle diameter | 15 | mm | |
| Cdyn | Dynamic load rating ballscrew | 4645 | N |
| C0 | Static load rating of the ballscrew | 7655 | N |
| C0_axial | Static load rating of the fixed bearing | 9240 | N |
| Fmax_axial | Max. axial load of fixed bearing | 3825 | N |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 501 | mm | |
| vmax | Max. speed | 1,48 | m/s |
| amax | Max. acceleration | 15 | m/s² |
| Repeatability | ± 0.003 | mm | |
| Positioning accuracy | 0,025 | mm | |
| Guide parallelism | 0,015 | mm | |
| Starting torque | 150 | Nmm | |
