Type:

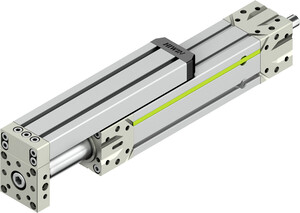

EA040S005-XNNN
Dimensions
| Dimensions | |||
|---|---|---|---|
| Size | 40 | mm | |
| Spindle diameter | 15 | mm | |
| Lead | 5 | mm | |
| LT | Total length | LST + 171 | mm |
| LST | Max. stroke length | 300 | mm |
| LBG_c | Zero stroke length slide assembly | 103,35 | mm |
| B1 | Switch position | 49 | mm |
| B2 | Switch position | 11 | mm |
| General technical data | |||
|---|---|---|---|
| Max. static force (related to a static structural safety of 1.0) | 5400 | N | |
| Fxdynmax | Max. dynamic feed force | 2800 | N |
| Reference service life | 500 | km | |
| vmax | Max. speed | 0,4 | m/s |
| amax | Max. acceleration | 20 | m/s² |
| Repeatability | ± 0.02 | mm | |
| Mamax | Max. drive torque | 2,68 | Nm |
| Cdyn(BS) | Dynamic load rating ballscrew | 16900 | N |
| C0(BS) | Static load rating ballscrew | 20500 | N |
| Cdyn(GW) | Dynamic load rating block | 3430 | N |
| C0(GW) | Static load rating block | 5890 | N |
| Max. speed | 5000 | 1/min | |
| Mechanical properties | |||
|---|---|---|---|
| Moving mass at 0-stroke | 0,59 | kg | |
| Moving mass per 1 m stroke | 3,24 | kg/m | |
| Jrot. | Mass inertia moment at 0 stroke | 0,05 | kgcm² |
| Jrot. | Mass inertia moment per 1 m of stroke | 0,39 | kgcm²/m |
| Total mass at 0 stroke | 1,25 | kg | |
| Total mass per 1 m stroke | 6,06 | kg/m | |
| Idle torque at 0 stroke | 0,2 | Nm | |
