A clever combination: Flexible HS3 three-axis system from HIWIN - standardised yet individual

Offenburg – Standardisation and individuality - two terms that normally contradict each other. But not for innovative linear guidance and drive technology manufacturer HIWIN. The new HS3 three-axis systems cleverly combine the advantages of both worlds.

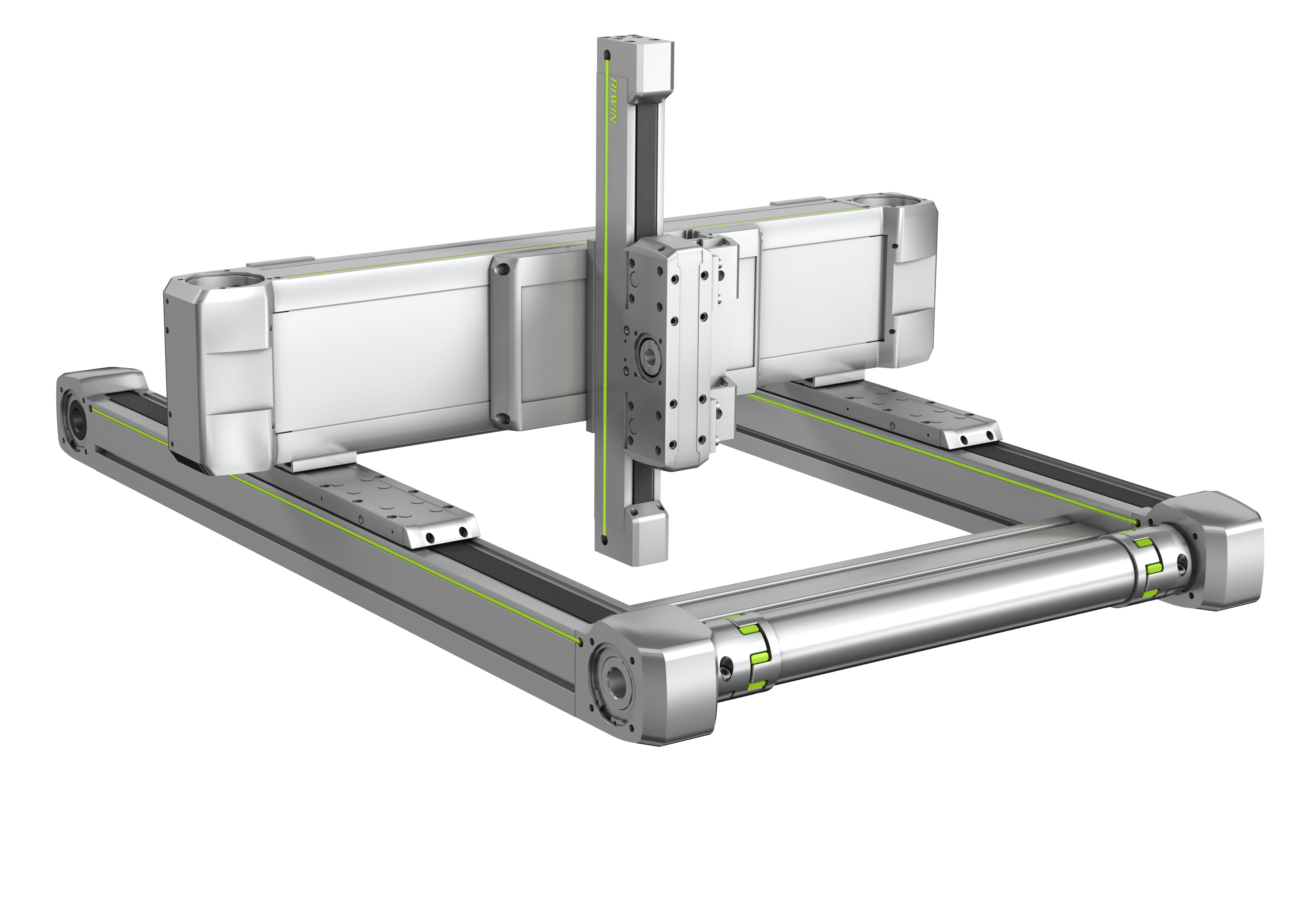

These three-axis systems are based on a HIWIN HD double axis in X direction. This guarantees both quick and precise positioning. A linear table from the HT-B series is built into the Y-axis. Thanks to the integrated double guides, it can absorb high levels of torque and is exceptionally rigid. The HC cantilever axis with Omega belt drive and a particularly lightweight yet rigid cantilever ensures dynamic movements in Z direction.


As a standard HIWIN product, the HS3 is assembled ready to install in the company's Offenburg plants and can be delivered within just 2 weeks.

A further advantage: The entire system can be ordered conveniently via the HIWIN web shop. And this is where individuality comes in: every three-axis system can be configured with just a few clicks using the HIWIN configurator at Simply specify the desired size, enter the stroke for all three directions of movement, precise to the millimetre, and select from a wide range of options, for example limit switches, energy chains and drive adaptations. As soon as you have completed configuration, the three-axis system is available for download in all common CAD formats.


An individual multi-axis system at the touch of a button - machine and plant engineering solutions don’t get any more efficient than this.
