Type:
LMSSA-20C200

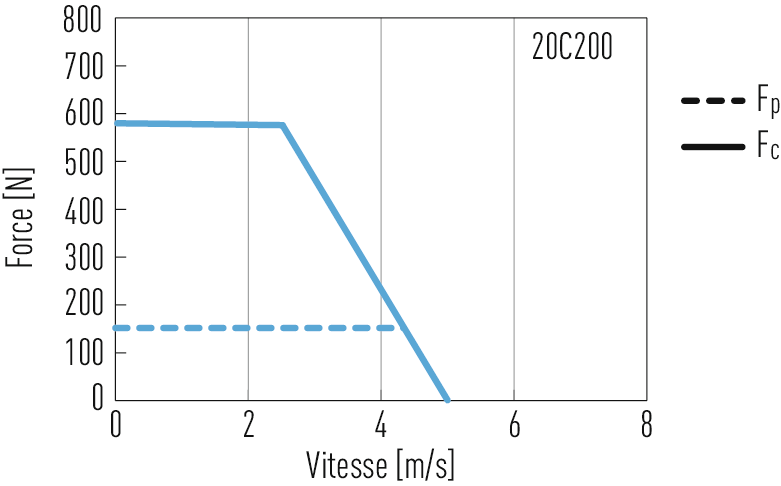

Max feed force Fx as a function of axis speed v
Stroke dimensions up to 1500 mm
| Technical data | |||
|---|---|---|---|
| Motor type | C | ||
| Linear motor | LMC-B8 | ||
| Fc | Continuous force at Tmax | 145 | N |
| Ic | Continuous current at Tmax | 2 | Aeff |
| Fp | Peak force (for 1 sec.) | 580 | N |
| Ip | Peak current (for 1 sec.) | 8 | Aeff |
| Kf | Force constant | 72,5 | N/Aeff |
| Ke | Electrical time constant | 0,3 | ms |
| R25 | Resistance | 14,6 | Ω |
| L | Inductance | 4,95 | mH |
| Ku | Back EMF constant | 40 | Veff/(m/s) |
| Km | Motor constant | 15,5 | N/⎷W |
| Rth | Thermal resistance | 0,68 | °C/W |
| Thermal switch | 3 PTC SNM 100 in series | ||
| Max. DC bus voltage | 330 | V | |
| 2τ | Pole pair pitch | 32 | mm |
| Tmax | Max. winding temperature | 100 | °C |
| Moved mass | 6 | kg | |
| LT | Total length | LT = LST + 480 | mm |
| LST | Stroke length | 100 - 2500 | mm |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 2600 | mm | |
| vmax | Max. speed | 5 | m/s |
| amax | Max. acceleration | 50 | m/s² |
| Repeatability | ± 0.001 | mm | |
