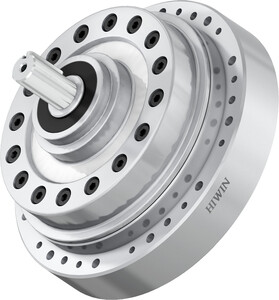

DSC-20-50-AJ-M
Type:
DSC-20-50-AJ-M
Article number:
80047494
CAD
Data sheet
Data sheet

DSC-20-50-AJ-M

www.www.hiwin.de

Technical data
Reduction 50
Nominal torque at 2000 rpm 25 Nm
Peak torque at start/stop 56 Nm
Maximum average torque 34 Nm
Collision torque 98 Nm
Maximum input speed 6500 1/min
Max. average speed 3500 1/min
Dimensions
A 82 mm
B 74 mm
C 98 mm
D 69 mm
E 10 mm
F 73,5 mm
G 5,7 mm
H 17,2 mm
I 8,8 mm
J 11,5 mm
K 9,3 mm
L 21 mm
M 20 mm
N 16,5 mm
P 3 mm
Q 8,2 mm
12 mm
R M3 × 6DP
3,4 mm
89 mm
12 mm
89 mm
10 °
12 mm
S1 12
S2 3,4 mm
62 mm
S3 89 mm
6 mm
2,9 mm
T1 12
88 mm
T2 M3
20 °
T3 89 mm
0,137 kgm²
U 10 °
1,4 kg
U 10 mm
V1 12
V2 M4 × 8DP
V3 62 mm
W1 6
W2 Ø5,5 × 3DP
W3 2,9 mm
W4 88 mm
X 20 °
Mass inertia moment 0,137 ×10–4kgm2
Mass 1,4 kg
