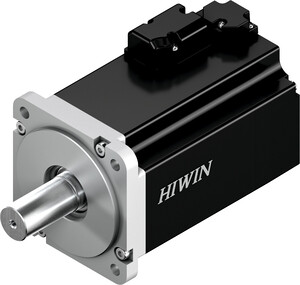

EM1-C-M-75-2-0-F-0-D
Type:
EM1-C-M-75-2-0-F-0-D
Article number:
8-07-0215
CAD
Data sheet
Data sheet

EM1-C-M-75-2-0-F-0-D

www.www.hiwin.de

Torque-speed diagram

Dimensions

Technical data of motor
Tc Nominal torque 2,39 Nm
Ic Nominal current 4,65 Aeff
Tp Peak torque (for 1 sec.) 8,36 Nm
Ip Peak current (for 1 sec.) 18,6 Aeff
nN Nominal speed 3000 1/min
nmax Maximum speed 6000 1/min
P Nominal power 750 W
V Nominal voltage 220 V AC
KT Torque constant 0,514 Nm/Aeff
Ke Back EMF constant 33,48 Veff/(1.000min-1)
R Winding resistance 1,08 Ω
L Winding inductance 4,6 mH
J Mass inertia moment 1,44 kgm² × 10-4
Mass 2,7 kg
Motor insulation class Class F
Environmental conditions
Ambient temperature 0 °C to 50 °C
Storage temperature -15 °C to 70 °C
Air humidity Up to 80% relative humidity
Max. installation height 1,000 m above sea level
Accessories
Name Product Number Description
Motor cable, ≤750W, without brake, 3m 8-10-1800 Motorleitung
Motor cable, ≤750W, without brake, 5m 8-10-1801 Motorleitung
Motor cable, ≤750W, without brake, 7m 8-10-1802 Motorleitung
Motor cable, ≤750W, without brake, 10m 8-10-1803 Motorleitung
HVPS04AB15MB 80040871 Motorleitung
HVPS04AB20MB 80040897 Motorleitung
HVPS04AB25MB 80040899 Motorleitung
HVPS04AB30MB 80040904 Motorleitung
EM1 encoder cable, absolute multi turn, ≤750W, 3m 8-10-1824 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 5m 8-10-1825 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 7m 8-10-1826 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 10m 8-10-1827 Encoderleitung
HVE23AAB15MB 80040993 Encoderleitung
HVE23AAB20MB 80040995 Encoderleitung
HVE23AAB25MB 80040998 Encoderleitung
HVE23AAB30MB 80041003 Encoderleitung
Downloads
Description Category Product Size Language
Servo motor with drive Project planning sheet Servo motors 157 KB
Servo motors EM1 Assembly Instructions Servo motors 4 MB
Servo motors EM1 Catalogue Servo motors 1 MB
To Download Center
