Type:

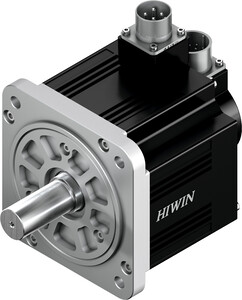

EM1-A-M-1K-2-0-E-0-A
Article number:
8-07-0209
Torque-speed diagram
Dimensions
| Technical data of motor | |||
|---|---|---|---|
| Tc | Nominal torque | 4,77 | Nm |
| Ic | Nominal current | 5,1 | Aeff |
| Tp | Peak torque (for 1 sec.) | 14,3 | Nm |
| Ip | Peak current (for 1 sec.) | 15,3 | Aeff |
| nN | Nominal speed | 2000 | 1/min |
| nmax | Maximum speed | 3000 | 1/min |
| P | Nominal power | 1000 | W |
| V | Nominal voltage | 220 | V AC |
| KT | Torque constant | 0,935 | Nm/Aeff |
| Ke | Back EMF constant | 54,15 | Veff/(1.000min-1) |
| R | Winding resistance | 0,81 | Ω |
| L | Winding inductance | 8 | mH |
| J | Mass inertia moment | 7,2 | kgm² × 10-4 |
| Mass | 5,4 | kg | |
| Motor insulation class | Class F | ||
| Environmental conditions | |||
|---|---|---|---|
| Ambient temperature | 0 °C to 50 °C | ||
| Storage temperature | -15 °C to 70 °C | ||
| Air humidity | Up to 80% relative humidity | ||
| Max. installation height | 1,000 m above sea level | ||
