Type:

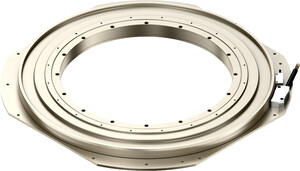

DMTK3-90SP00-B0-6XS-0-0
Torque-speed diagram
Dimensions
| Technical data of rotary table | |||
|---|---|---|---|
| Tp | Peak torque (for 1 sec.) | 110 | Nm |
| Tc | Continuous torque | 31 | Nm |
| J | Mass inertia moment | 0,4 | kgm² |
| Mass | 20 | kg | |
| Fa | Max. axial load | 750 | N |
| Mk | Max. tilting moment | 75 | Nm |
| n | Nominal speed | 100 | 1/min |
| Accuracy | ± 15 | arcsec | |
| Repeatability | ± 1.5 | arcsec | |
| Radial run-out | 0,01 | mm | |
| Axial run-out | 0,01 | mm | |
| Outer diameter | 520 | mm | |
| Di | Hollow shaft diameter | 340 | mm |
| H | Height | 30 | mm |
| Protection class | IP40 | ||
| Technical data of motor | |||
|---|---|---|---|
| Ip | Peak current (for 1 sec.) | 8,7 | Aeff |
| Ic | Continuous current | 2,6 | Aeff |
| Km | Motor constant | 2,3 | Nm/⎷W |
| R25 | Winding resistance | 23,8 | Ω |
| L25 | Inductance | 16,7 | mH |
| Te | Electrical time constant | 0,7 | ms |
| Kt | Torque constant | 13,5 | Nm/Aeff |
| Ku | Back EMF constant | 7,8 | Veff/(rad/s) |
| 2p | Number of poles | 60 | |
| Rth | Thermal resistance | 0,33 | °C/W |
| Thermal protection | PTC SNM 100 | ||
| Max. DC bus voltage | 600 | V | |
