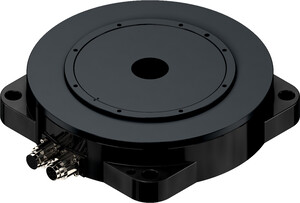

Type:
DMN93-E000
Article number:
7.R2160
| Technical data of rotary table | |||
|---|---|---|---|
| Tp | Peak torque (for 1 sec.) | 39,6 | Nm |
| Tc | Continuous torque | 13,2 | Nm |
| Ts | Stall torque | 9,24 | Nm |
| J | Mass inertia moment | 0,012 | kgm² |
| Mass | 7,5 | kg | |
| Fa | Max. axial load | 1000 | N |
| Fr | Max. radial load | 1000 | N |
| Mk | Max. tilting moment | 50 | Nm |
| Max. speed (600 VDC) | 650 | 1/min | |
| Max. speed (325 VDC) | 600 | 1/min | |
| Accuracy | ± 45 | arcsec | |
| Repeatability | ± 2.5 | arcsec | |
| Radial run-out | 0,03 | mm | |
| Axial run-out | 0,03 | mm | |
| Outer diameter | 230 | mm | |
| Di | Hollow shaft diameter | 35 | mm |
| H | Height | 55 | mm |
| Protection class | IP40 | ||
| Technical data of motor | |||
|---|---|---|---|
| Ip | Peak current (for 1 sec.) | 10,2 | Aeff |
| Ic | Continuous current | 3,4 | Aeff |
| Km | Motor constant | 1,5 | Nm/⎷W |
| R25 | Winding resistance | 4,3 | Ω |
| L25 | Inductance | 23,2 | mH |
| Te | Electrical time constant | 5,4 | ms |
| Kt | Torque constant | 3,9 | Nm/Aeff |
| Ku | Back EMF constant | 2,25 | Veff/(rad/s) |
| 2p | Number of poles | 22 | |
| Rth | Thermal resistance | 1,01 | °C/W |
| Tth | Thermal time constant | 1700 | s |
| Thermal protection | PTC SNM 100 | ||
| Max. DC bus voltage | 600 | V | |
