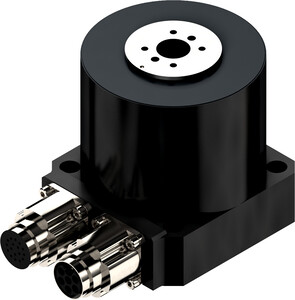

Type:
DMN22-R000
Article number:
80072024
Dimensions
| (TMS_TechDataRotaryTable) | |||
|---|---|---|---|
| Tp | 1,92 | Nm | |
| Tc | 0,64 | Nm | |
| Ts | 0,44 | Nm | |
| J | 0,00003 | kgm² | |
| Fa | 100 | N | |
| Fr | 50 | N | |
| Mk | 1,5 | Nm | |
| Di | 12 | mm | |
| H | 71,5 | mm | |
| (TMS_TechDataMotor) | |||
|---|---|---|---|
| Ip | 5,7 | Aeff | |
| Ic | 1,9 | Aeff | |
| Km | 0,14 | Nm/⎷W | |
| R25 | 4,1 | Ω | |
| L25 | 16,7 | mH | |
| Te | 4,1 | ms | |
| Kt | 0,34 | Nm/Aeff | |
| Ku | 0,14 | Veff/(rad/s) | |
| 2p | 10 | ||
| Rth | 3,38 | °C/W | |
| Tth | 30 | s | |
| 600 | V | ||
