Type:

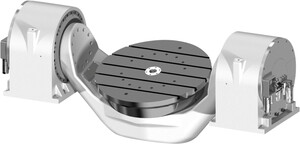

RAB-800

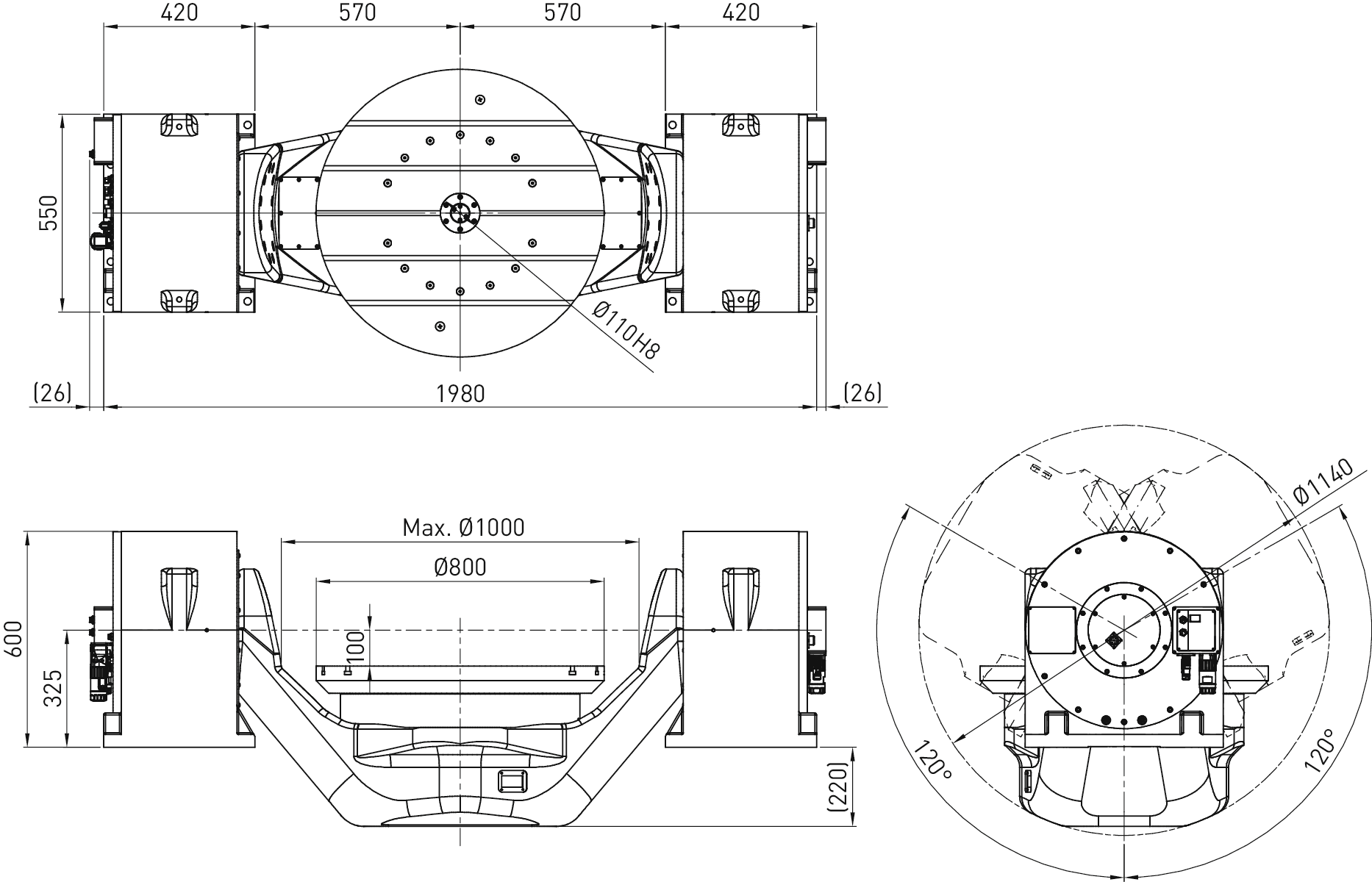

Dimensions
| Technical data | |||
|---|---|---|---|
| Rotary axis drive motor | TMRWDF | ||
| Swivel axis drive motor | TMRWDF | ||
| Max. rotary axis speed | 90 | 1/min | |
| Max. swivel axis speed | 60 | 1/min | |
| Rotary axis continuous torque | 2200 | Nm | |
| Swivel axis continuous torque | 4400 | Nm | |
| Rotary axis peak torque | 3900 | Nm | |
| Swivel axis peak torque | 7800 | Nm | |
| Clamp | Pneumatic (6 bar) | ||
| Rotary axis clamp holding torque | 4200 | Nm | |
| Swivel axis clamp holding torque | 8400 | Nm | |
| Accuracy | 2.5/5.0/15.0 | arcsec | |
| Table diameter | 800 | mm | |
| Centre of swivel axis | 325 | mm | |
| Table height | 225 | mm | |
| T-groove width | 14 H8 | mm | |
| Mass | 2200 | kg | |
| Max. load | 1200 | kg | |
