Type:

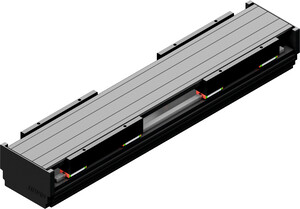

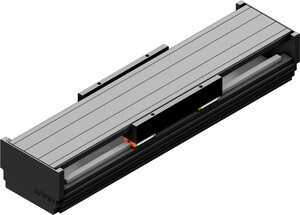

LMSSA-10S200
| Technical data | |||
|---|---|---|---|
| Motor type | S | ||
| Linear motor | LMSA12 | ||
| Fc | Continuous force at Tmax | 205 | N |
| Ic | Continuous current at Tmax | 4,2 | Aeff |
| Fp | Peak force (for 1 sec.) | 579 | N |
| Ip | Peak current (for 1 sec.) | 12,7 | Aeff |
| Fu | Ultimate force (for 0.5 s) | 759 | N |
| Iu | Ultimate current (for 0.5 s) | 21,1 | Aeff |
| Kf | Force constant | 48,6 | N/Aeff |
| Ke | Electrical time constant | 4,5 | ms |
| R25 | Resistance | 4,1 | Ω |
| L | Inductance | 18,5 | mH |
| Ku | Back EMF constant | 28,1 | Veff/(m/s) |
| Km | Motor constant | 19,6 | N/⎷W |
| Rth | Thermal resistance | 0,63 | °C/W |
| Tth | Thermal time constant | 890 | s |
| Thermal switch | PTC SNM 120 | ||
| Max. DC bus voltage | 600 | V | |
| 2τ | Pole pair pitch | 30 | mm |
| Tmax | Max. winding temperature | 120 | °C |
| Moved mass | 3 | kg | |
| LT | Total length | LT = LST + 350 | mm |
| LST | Stroke length | 100 - 2700 | mm |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 1300 | mm | |
| vmax | Max. speed | 4,4 | m/s |
| amax | Max. acceleration | 50 | m/s² |
| Repeatability | ± 0.001 | mm | |
