Type:
HC100B280

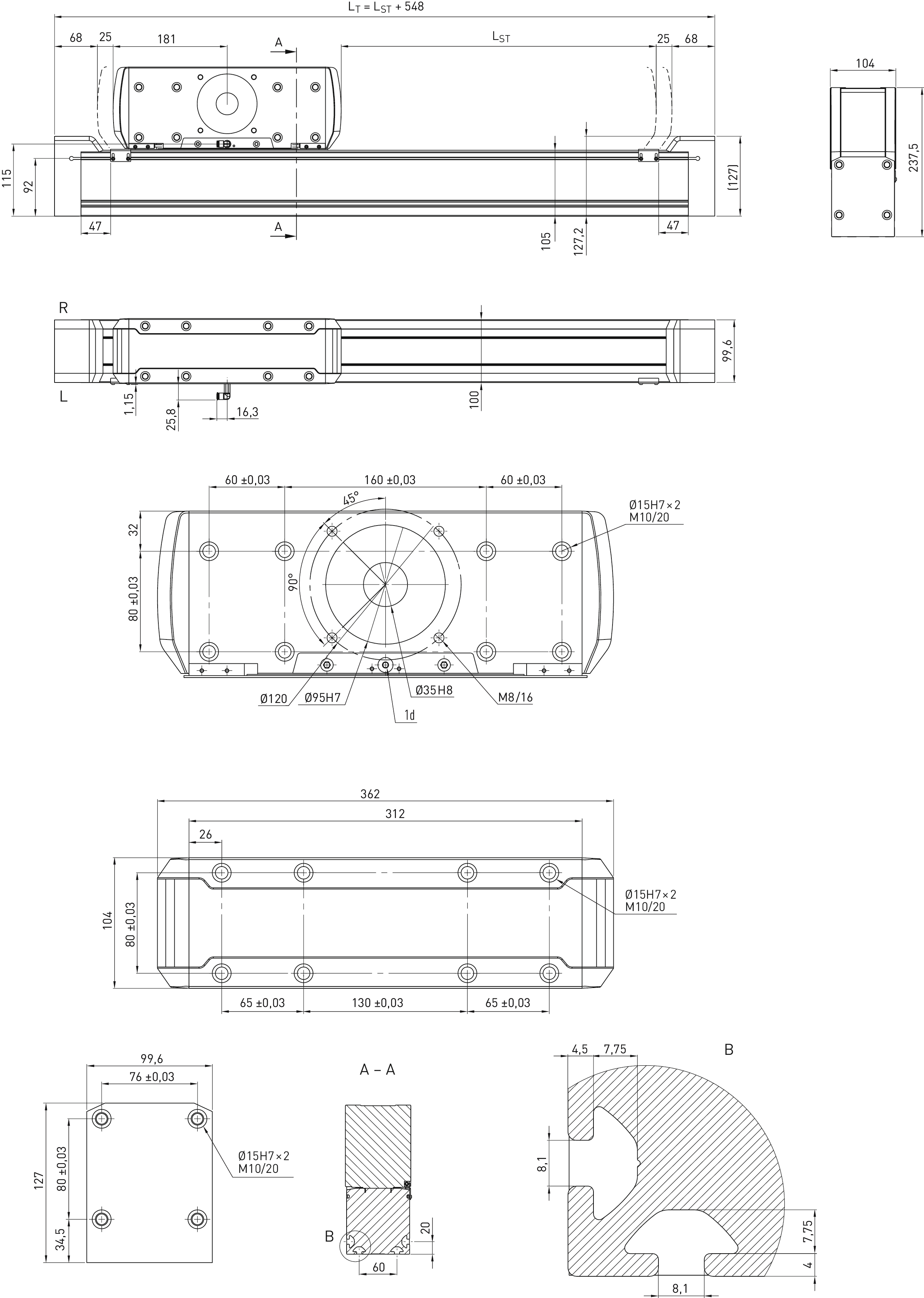

Dimensions
Max drive torque MA as a function of axis speed v

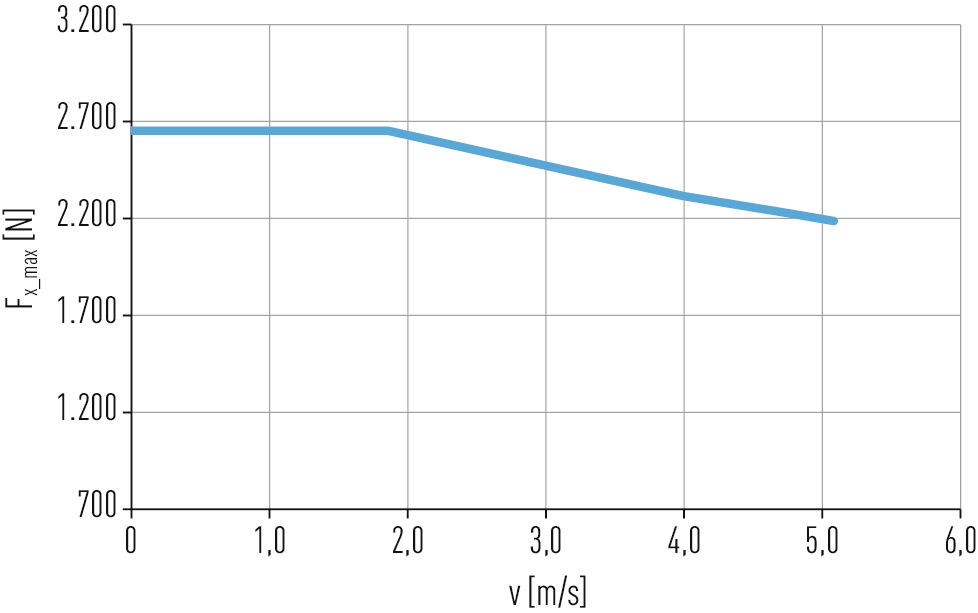

Max feed force Fx as a function of axis speed v
| Dimensions | |||
|---|---|---|---|
| Lc | Total carriage length | 362 | mm |
| LT | Total length | LT = LST + 548 | mm |
| Load data | |||
|---|---|---|---|
| Fydynmax | Ultimate force | 8034 | N |
| Fzdynmax | Ultimate force | 8034 | N |
| Mxdynmax | Maximum torque | 110 | Nm |
| Mydynmax | Maximum torque | 844 | Nm |
| Mzdynmax | Maximum torque | 844 | Nm |
| z | Upper carriage edge to guiding centre | 176,95 | mm |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 1800 | mm | |
| vmax | Max. speed | 5 | m/s |
| amax | Max. acceleration | 50 | m/s² |
| Fx_max | Max. feed force | 2667 | N |
| Ma_max | Max. drive torque | 118,8 | Nm |
| Load capacity | 60 | kg | |
| Maximum horizontal stroke length | 1200 | mm | |
| Maximum vertical stroke length | 1800 | mm | |
| Repeatability | ± 0.05 | mm | |
| Ix | Area moment of inertia of profile cross-section | 3290845 | mm⁴ |
| Iy | Area moment of inertia of profile cross-section | 4100279 | mm⁴ |
| Guiding | |||
|---|---|---|---|
| Guiding type | CGL25CA | ||
| Cdyn | Dynamic load rating | 34960 | N |
| C0 | Static load rating | 43940 | N |
| Drive | |||
|---|---|---|---|
| Drive element | B40HTD8 | ||
| Feed constant | 280 | mm/U | |
| Effective diameter of toothed belt pulley | 89,13 | mm | |
| Mechanical properties | |||
|---|---|---|---|
| Mass at 0 stroke | 20,12 | kg | |
| Mass per 1 m stroke | 13,2 | kg/m | |
| Mass of cantilever at 0 stroke | 11,72 | kg | |
| Mass of cantilever per 1 m stroke | 13,2 | kg/m | |
| Jrot. | Mass inertia moment | 28,99 | kgcm² |
| Idle torque at 0 stroke | 3 | Nm | |
Toothed belt
The toothed belt with modern high performance profiles (HTD shape) and reinforced steel tension members enables high power transmission while offering high skip resistance.
| Description | Category | Product | Size | Language |
|---|---|---|---|---|
| Toothed belt axes HM-B, HT-B, HB-B,HC-B, HD, HS | Assembly Instructions | Linear axes & linear axis systems | 11 MB | |
| Linear axes and axis systems HX | Catalogue | Linear axes & linear axis systems | 13 MB | |
| Cantilever axis HC | Project planning sheet | Linear axes & linear axis systems | 153 KB | |
| Cantilever axes HC150 | Flyer | Linear axes & linear axis systems | 208 KB |
HB bridge axes and HC cantilever axes for heavy load applications
Our HB bridge axes and HC cantilever axes for heavy load applications are equipped with a specially designed, encapsulated aluminium strand casting profile featuring reinforcements. With a payload of up to 350 kg and 10x higher torsion rigidity compared to our HIWIN table axes, the bending and torsion-resistant linear module is especially well suited to sustained movement of large masses with peak demands for dynamic response. Our HIWIN heavy load axes with belt drive, linear motor or rack and pinion drive are configurable depending on your application area.
HIWIN HX: One axis family – countless possibilities
An innovative design, two designs, three drive types and countless possibilities. The bendable HIWIN HX axis system offers the right solution for your ideas.
