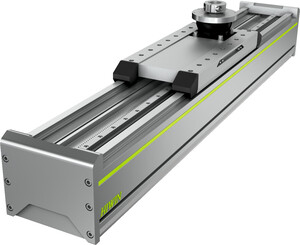

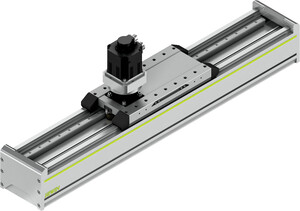

Type:
HB250R223
Dimensions
Max. acceleration amax depending on the external payload mext
Deflection w over unsupported axis length LAW under payload
| Dimensions | |||
|---|---|---|---|
| Lc | Total carriage length | 600 | mm |
| B | Switch position | 308,5 | mm |
| C | Switch position | 308,5 | mm |
| LT | Total length | LT = LST + 780 | mm |
| Load data | |||
|---|---|---|---|
| Fydynmax | Ultimate force | 11600 | N |
| Fzdynmax | Ultimate force | 13720 | N |
| Mxdynmax | Maximum torque | 1303 | Nm |
| Mydynmax | Maximum torque | 2490 | Nm |
| Mzdynmax | Maximum torque | 2105 | Nm |
| z | Upper carriage edge to guiding centre | 54,3 | mm |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 5160 | mm | |
| vmax | Max. speed | 5 | m/s |
| amax | Max. acceleration | 50 | m/s² |
| Fx_max | Max. feed force | 4300 | N |
| Ma_max | Max. drive torque | 104,9 | Nm |
| Load capacity | 350 | kg | |
| Maximum total length | 5160 | mm | |
| Repeatability | ± 0.05 | mm | |
| Ix | Area moment of inertia of profile cross-section | 34509373 | mm⁴ |
| Iy | Area moment of inertia of profile cross-section | 80997444 | mm⁴ |
| Guiding | |||
|---|---|---|---|
| Guiding type | CGH25HA | ||
| Cdyn | Dynamic load rating | 40500 | N |
| C0 | Static load rating | 54080 | N |
| Drive | |||
|---|---|---|---|
| Interlocking | Module 2, helical toothing | ||
| Feed constant | 153,33 | mm/U | |
| Pinion effective diameter | 48,81 | mm | |
| Number of teeth pinion | 23 | ||
| Mechanical properties | |||
|---|---|---|---|
| Carriage mass | 12,43 | kg | |
| Mass at 0 stroke | 48,23 | kg | |
| Mass per 1 m stroke | 43,42 | kg/m | |
| Fl | Carriage displacement force | 20 | N |
