Type:

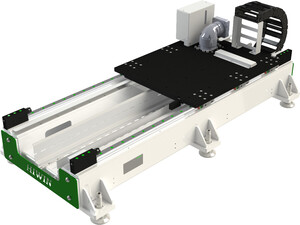

LT-M (FANUC)
| Dimensions | |||
|---|---|---|---|
| Energy chain radius | 200/300 | mm | |
| Energy chain inner dimensions | 44 × 168 | mm | |
| General technical data | |||
|---|---|---|---|
| Max. stroke | 8710 | mm | |
| vmax | Max. speed | 2 | m/s |
| amax | Max. acceleration | 2 | m/s² |
| Standard gearbox ratio | 8 | ||
| Load capacity | 1000 | kg | |
| Maximum total length | 10000 | mm | |
| Standard single base profile length | 2000 | mm | |
| Repeatability | ± 0.05 | mm | |
| Mechanical properties | |||
|---|---|---|---|
| Carriage mass | 280 | kg | |
| Mass per 1 m stroke | 218 | kg/m | |
