Type:

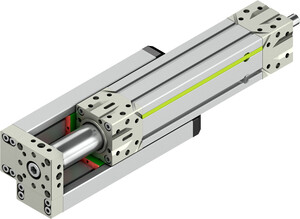

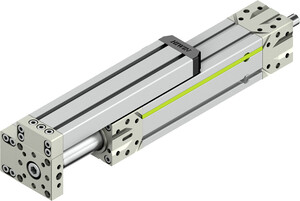

EA080S010-XXNN
Dimensions
| Dimensions | |||
|---|---|---|---|
| Size | 80 | mm | |
| Spindle diameter | 40 | mm | |
| Lead | 10 | mm | |
| LT | Total length | LST + 283,5 | mm |
| LST | Max. stroke length | 300 | mm |
| LBG_c | Zero stroke length slide assembly | 153,9 | mm |
| B1 | Switch position | 88 | mm |
| B2 | Switch position | 16 | mm |
| General technical data | |||
|---|---|---|---|
| Max. static force (related to a static structural safety of 1.0) | 24000 | N | |
| Fxdynmax | Max. dynamic feed force | 11900 | N |
| Reference service life | 1000 | km | |
| vmax | Max. speed | 0,4 | m/s |
| amax | Max. acceleration | 15 | m/s² |
| Repeatability | ± 0.02 | mm | |
| Mamax | Max. drive torque | 22,04 | Nm |
| Cdyn(BS) | Dynamic load rating ballscrew | 71800 | N |
| C0(BS) | Static load rating ballscrew | 132300 | N |
| Cdyn(GW) | Dynamic load rating block | 8930 | N |
| C0(GW) | Static load rating block | 13380 | N |
| Max. speed | 2400 | 1/min | |
| Mechanical properties | |||
|---|---|---|---|
| Jrot. | Mass inertia moment at 0 stroke | 3,76 | kgcm² |
| Jrot. | Mass inertia moment per 1 m of stroke | 16,07 | kgcm²/m |
| Idle torque at 0 stroke | 1 | Nm | |
