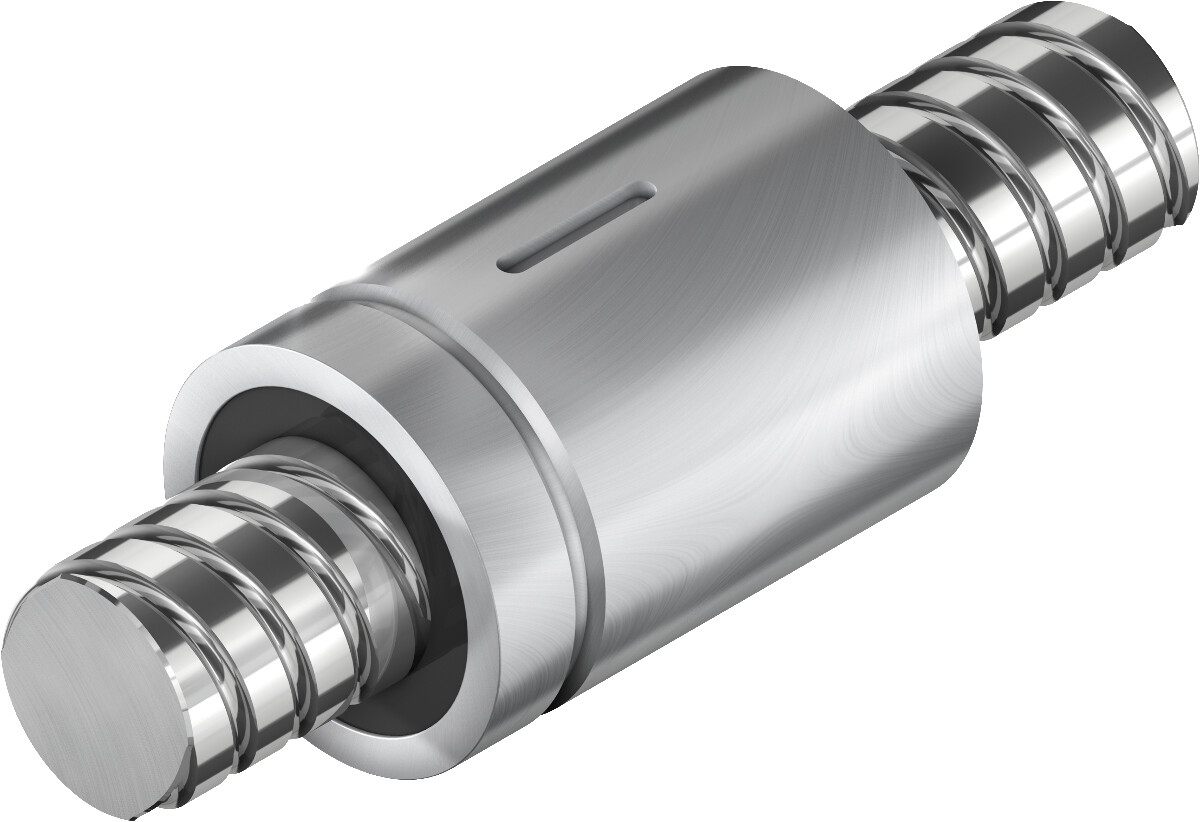

Cylindrical nut

If space is limited, ballscrews with cylindrical nuts are ideal. They can be fully integrated into the application. To install them, the nut is clamped and secured against twisting by means of a feather key. Lubricant is supplied via a circumferential groove.
41 product(s)
Type Lead ds D L
Cdyn

C0

Axial play

Mm

R08-02,5T2-RSIT
2.5 7,7 17,5 27,5
R10-02,5T2-RSIT
2.5 9,3 19,5 25
R10-04T2-RSIT
4 9,7 24 32
R12-04B1-RSIT
4 11,9 25,5 34
R16-10T3-RSI
10 15,3 28 60
R20-10T3-RSI
10 19,8 34 60
R16-05T3-ZE
5 16 28 40
R20-05T4-ZE
5 20 36 51
R25-05T4-ZE
5 25 40 60
R25-10T3-ZE
10 25 48 65
R32-05T5-ZE
5 32 48 60
R32-10T4-ZE
10 32 56 80
R32-20T2-ZE
20 32 56 80
R40-05T5-ZE
5 40 56 68
R40-10T4-ZE
10 40 62 88
R40-20T2-ZE
20 40 62 88
R50-05T5-ZE
5 50 68 69
R50-10T4-ZE
10 50 72 100
R50-20T3-ZE
20 50 72 114
R63-10T6-ZE
10 63 85 120
R63-20T4-ZE
20 63 95 135
R80-10T6-ZE
10 80 105 120
R80-20T4-ZE
20 80 125 150
R80-20T6-ZEH
20 78 130 182
R16-05T3-ZD
5 16 28 72
R20-05T4-ZD
5 20 36 86
R25-05T4-ZD
5 25 40 100
R25-10T3-ZD
10 25 48 115
R32-05T5-ZD
5 32 48 100
R32-10T3-ZD
10 32 56 136
R32-20T2-ZD
20 32 56 142
R40-05T5-ZD
5 40 56 108
R40-10T4-ZD
10 40 62 142
R40-20T2-ZD
20 40 62 146
R50-05T5-ZD
5 50 68 108
R50-10T4-ZD
10 50 72 168
R50-20T3-ZD
20 50 72 190
R63-10T6-ZD
10 63 85 208
R63-20T4-ZD
20 63 95 260
R80-10T6-ZD
10 80 105 208
R80-20T4-ZD
20 80 125 285
