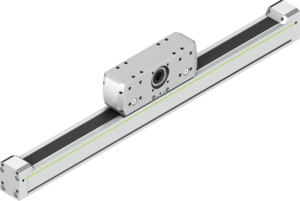

HC100B280
Dimensions
Max drive torque MA as a function of axis speed v
Max feed force Fx as a function of axis speed v
| Dimensions | |||
|---|---|---|---|
| Lc | Total carriage length | 362 | mm |
| LT | Total length | LT = LST + 548 | mm |
| Load data | |||
|---|---|---|---|
| Fydynmax | Ultimate force | 8034 | N |
| Fzdynmax | Ultimate force | 8034 | N |
| Mxdynmax | Maximum torque | 110 | Nm |
| Mydynmax | Maximum torque | 844 | Nm |
| Mzdynmax | Maximum torque | 844 | Nm |
| z | Upper carriage edge to guiding centre | 176,95 | mm |
| General technical data | |||
|---|---|---|---|
| vmax | Max. speed | 5 | m/s |
| amax | Max. acceleration | 30 | m/s² |
| Fx_max | Max. feed force | 2667 | N |
| Ma_max | Max. drive torque | 118,8 | Nm |
| Load capacity | 60 | kg | |
| Maximum horizontal stroke length | 1200 | mm | |
| Maximum vertical stroke length | 1800 | mm | |
| Repeatability | ± 0.05 | mm | |
| Ix | Area moment of inertia of profile cross-section | 3290845 | mm⁴ |
| Iy | Area moment of inertia of profile cross-section | 4100279 | mm⁴ |
| Guiding | |||
|---|---|---|---|
| Guiding type | CGL25CA | ||
| Cdyn | Dynamic load rating | 34960 | N |
| C0 | Static load rating | 43940 | N |
| Drive | |||
|---|---|---|---|
| Drive element | B40HTD8 | ||
| Feed constant | 280 | mm/U | |
| Effective diameter of toothed belt pulley | 89,13 | mm | |
| Mechanical properties | |||
|---|---|---|---|
| Mass at 0 stroke | 20,12 | kg | |
| Mass per 1 m stroke | 13,2 | kg/m | |
| Mass of cantilever at 0 stroke | 11,72 | kg | |
| Mass of cantilever per 1 m stroke | 13,2 | kg/m | |
| Jrot. | Mass inertia moment | 28,99 | kgcm² |
| Idle torque at 0 stroke | 3 | Nm | |
